Magnaseal High Strength Leak Patch

$0.00

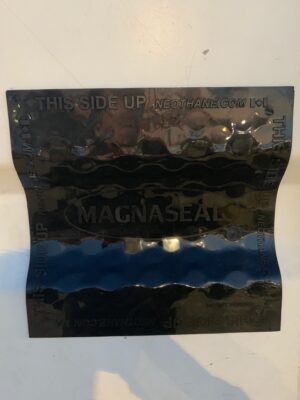

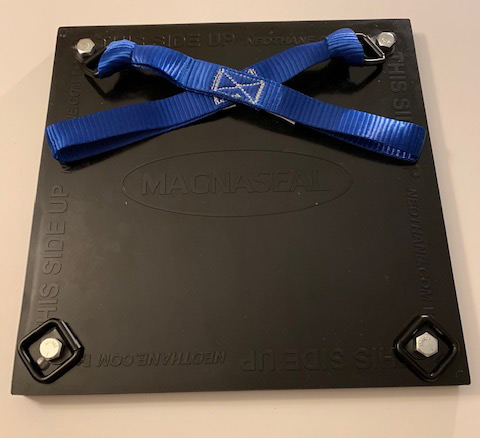

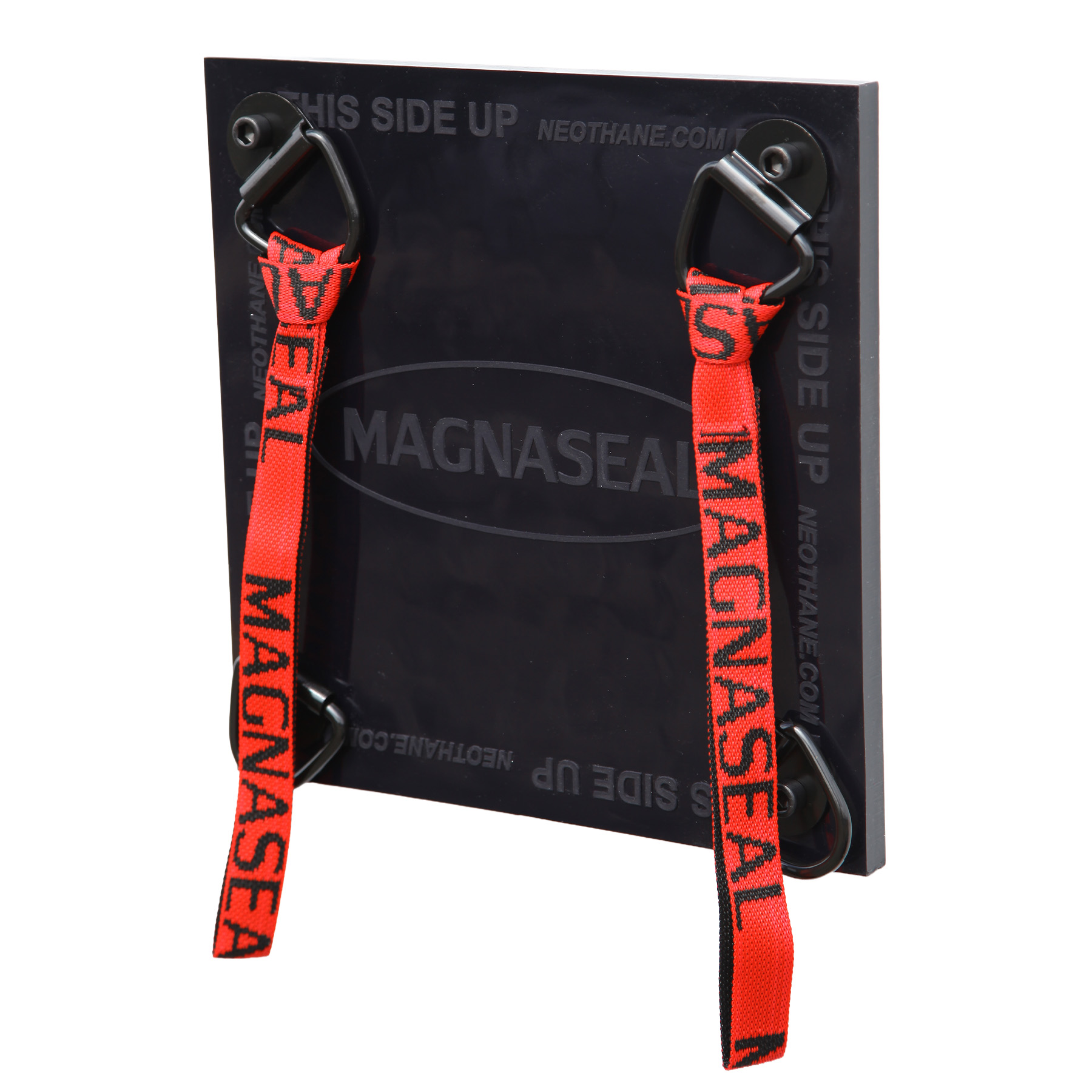

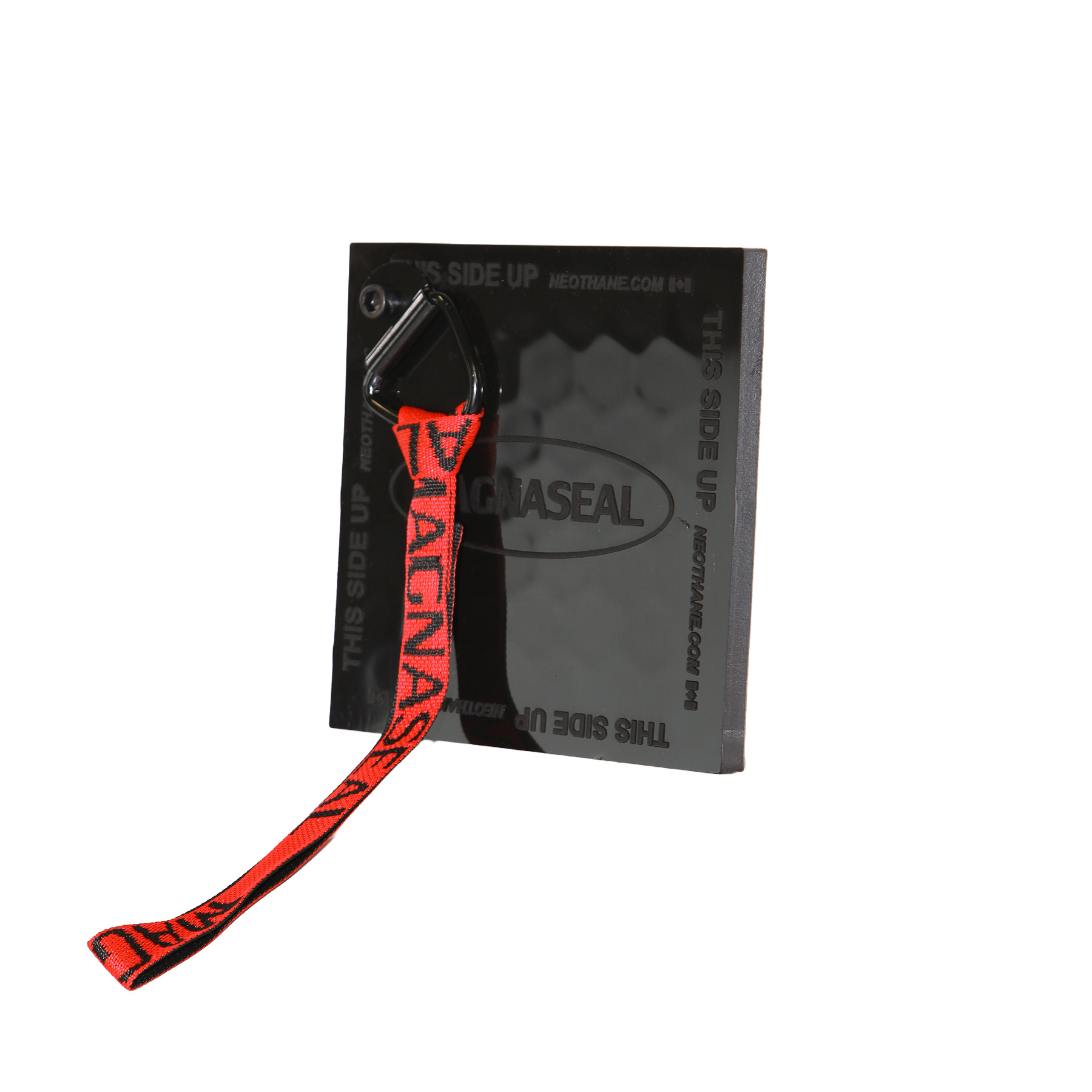

The MAGNASEAL Leak Patch is a high strength, magnetic, flexible urethane patch. It can hold back at least 30 pounds of pressure. All sizes come with built in “D” rings and two 6 inch continuous loop webbing straps which can be used for application.

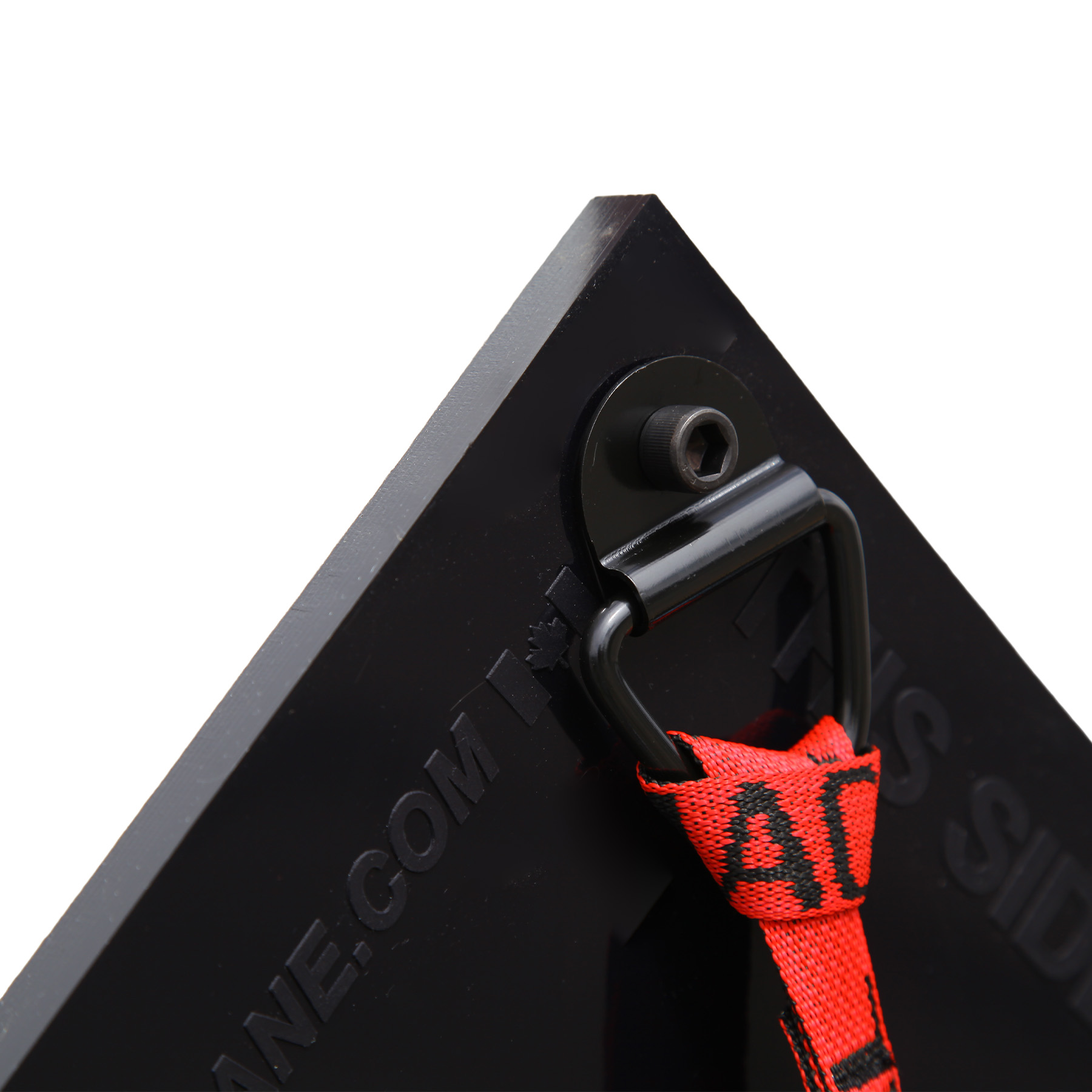

All Leak patches are 5/8 inch thickness. The corner D Ring adds 1/4 inch to the thickness.
The 18 inch Leak Patch with valve comes fitted with a threaded 2 inch pass through valve which will allow for off loading. This passthrough valve adds 1 1/2 inches to the thickness of this patch.

Carrying Case – Each MAGNASEAL Leak Patch comes with a carrying case. The carrying case has an industrial zipper and insulated sides to buffer the strength of the MAGNASEAL while it is not in use. The carrying case makes it easy to keep MAGNASEAL protected.

SKU: 1001 Category:

Additional information

MLP Size

36 inches X 36 inches, 8 inches by 8 inches, 12 inches by 12 inches, 18 inches by 18 inches, 18 inches by 18 inches with threaded valve, 24 inches by 24 inches

Patch Size:
8″ x 8″ x 5/8″
Box Size:
10″ x 10″ x 3″
Weight:
4 pounds

Patch Size:
12″ x 12″ x 5/8″
Box Size:
14″ x 14″ x 3″
Weight:
10 pounds

Patch Size:
18″ x 18″ x 5/8″
Box Size:
20″ x 20″ x 3″
Weight:
30 pounds

Patch Size:
18″ x 18″ x 5/8″
with valve
Box Size:
20″ x 20″ x 3″
Weight:
28 pounds

Patch Size:
24″ x 24″ x 5/8″
Box Size:
26″ x 26″ x 3″
Weight:
50 pounds

MAGNASEAL Products – Chemical Resistivity Testing Data Summary

Neothane, Inc. contracted a third party quality assurance testing laboratory to perform chemical resistivity testing. The test method used was ASTM 903 which is the standard test method for resistance of materials used in testing chemical protective outfitting to the penetration by liquids. Testing was performed from June 14th thru June 22nd 2018. The following table summarizes the test results data.
